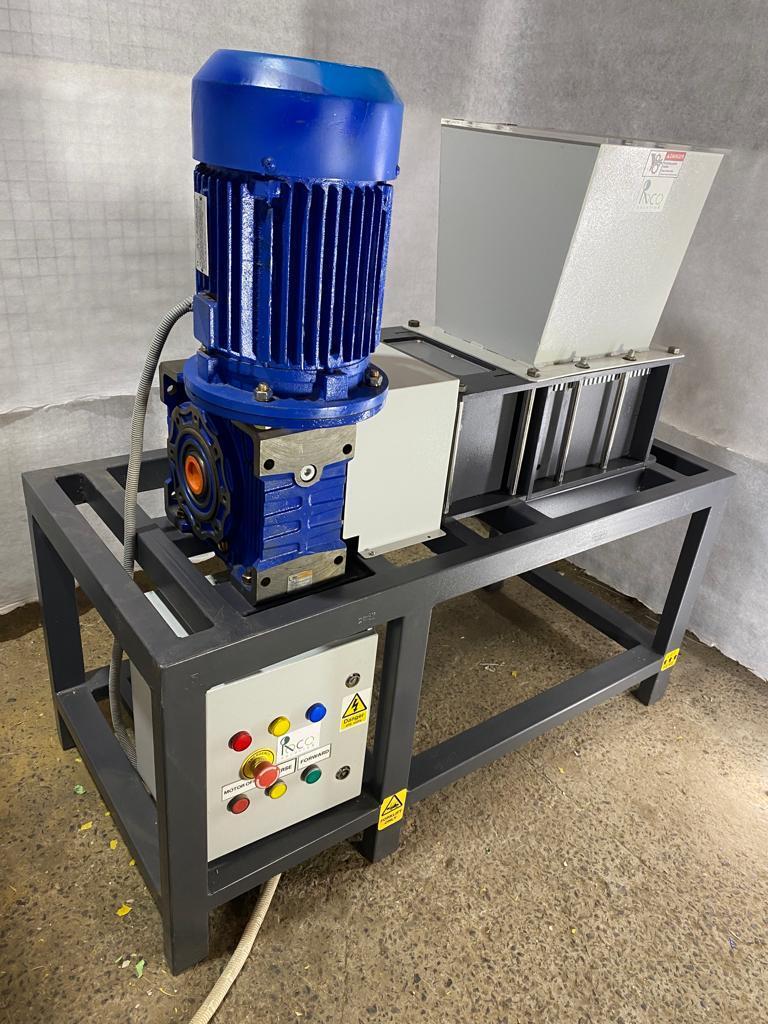

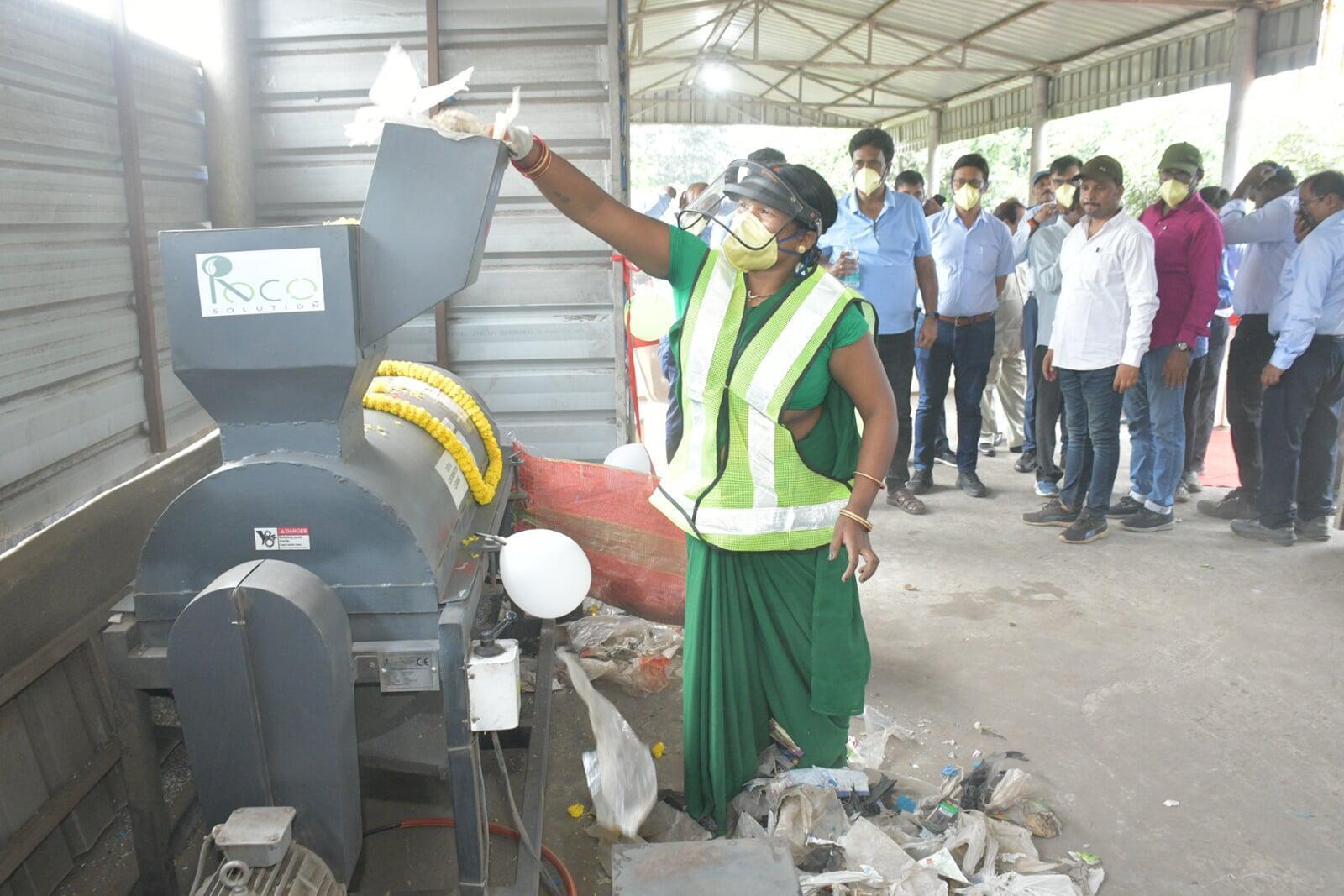

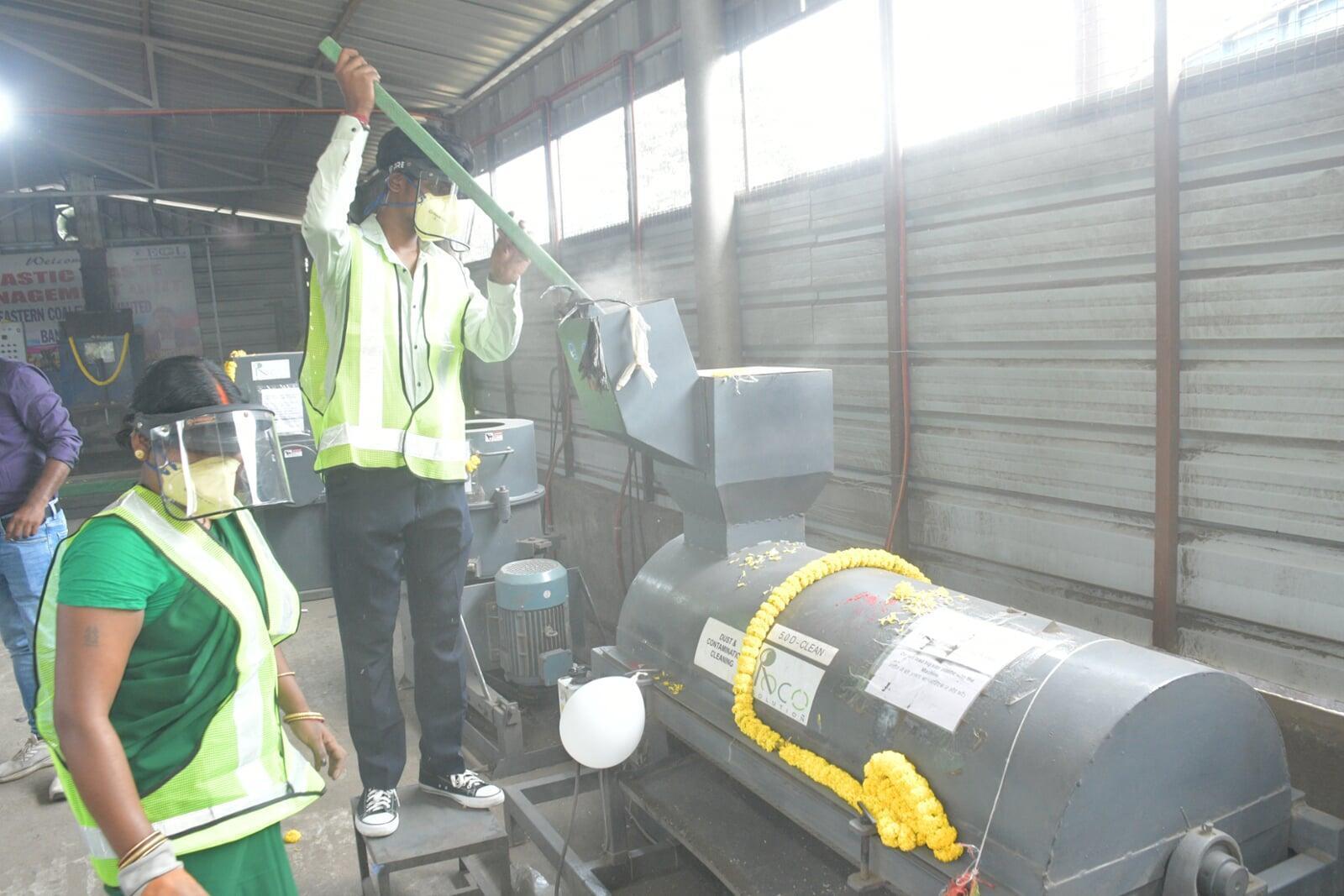

V3 Shredder
The Shredder cuts plastic items into small flakes ready to be turned into new things by the other machines.
Suitable waste: PET Bottles, Bottle caps, Small Shampoo bottles, Food Containers, Polythene bags, Milk pouches, MLP waste, Plastic straws, and Single-use plastic.
2HP Three-phase Motor 20 RPM Gearbox EN8 Blades And Single Shaft Shredder Box Output Flex Size: 10-20mm Output Capacity: 5kg Per Hour Noice: up to 70db

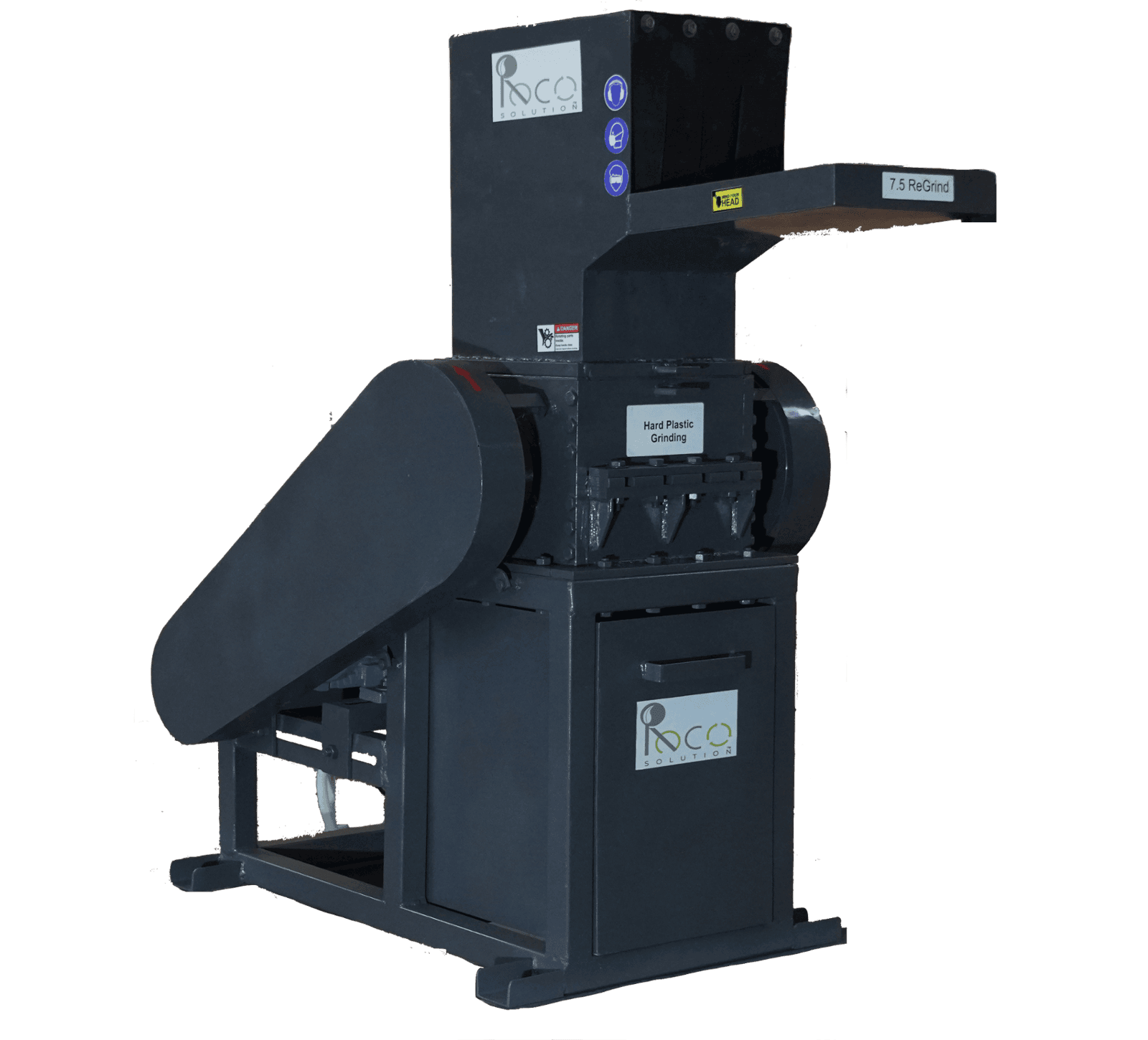

Shredder PRO
The Shredder Pro shreds plastic waste into smaller flakes ready to be recycled. This Semi Industrial double-axis machine is able to shred up to 20 kg of plastic every hour depending on the desired flake size.
Suitable waste: PET Bottles, Bottle caps, Small Shampoo bottles, Food Containers, Polythene bags, Milk pouches, MLP waste, Plastic straws, Aluminium cans, Buckets, toys, plastic stools and chairs, cloth and leather waste, textile waste, fabric waste, agriculture waste, other industrial and commercial waste and Single-use plastic.
5HP & 7.5HP Three-phase Motor 20 RPM Gearbox EN8 Blades And Double Shaft Shredder Box Output Flex Size: 10mm Output Capacity: 20kg Per Hour Noice: up to 80db

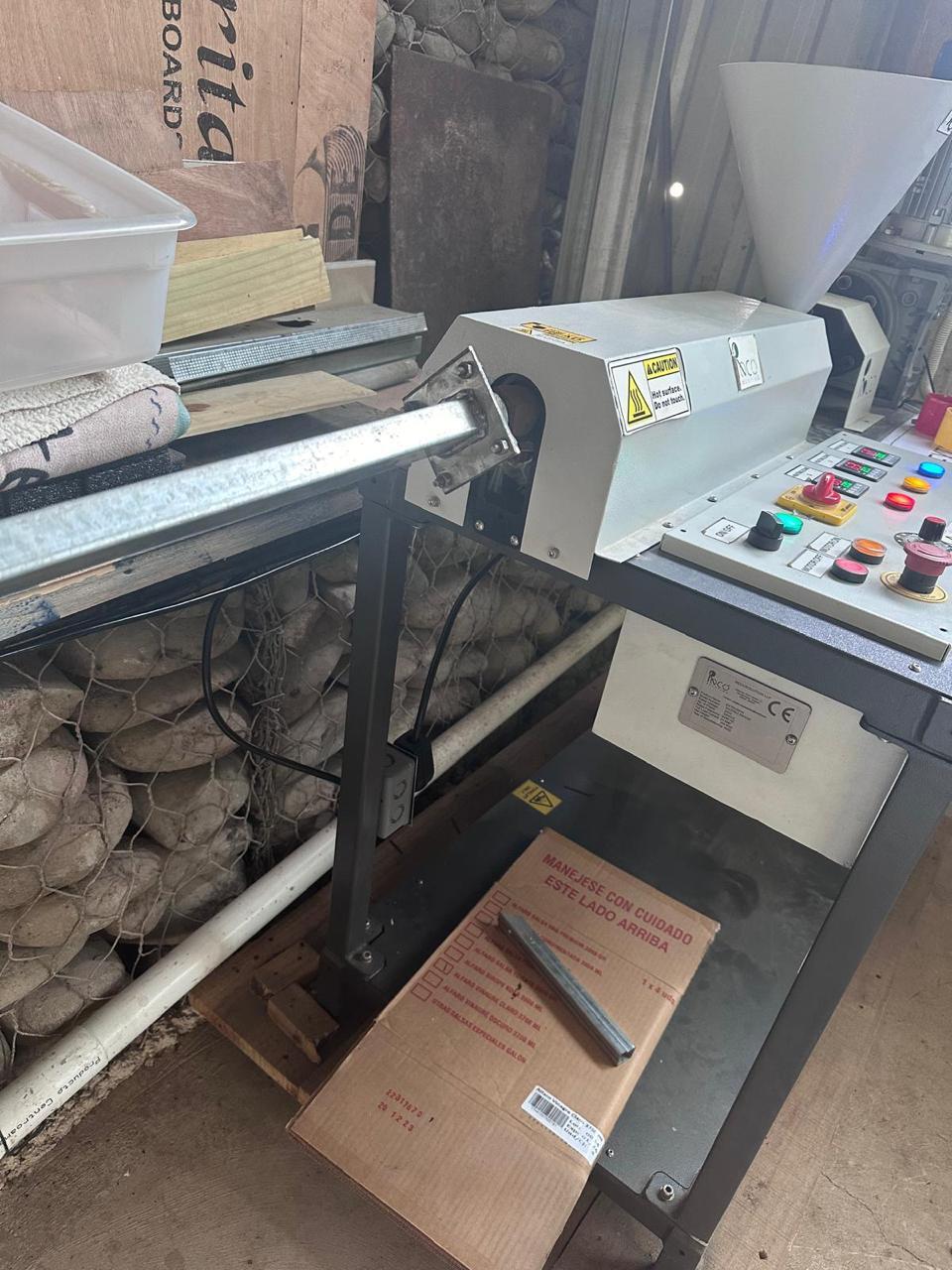

V3 Extruder

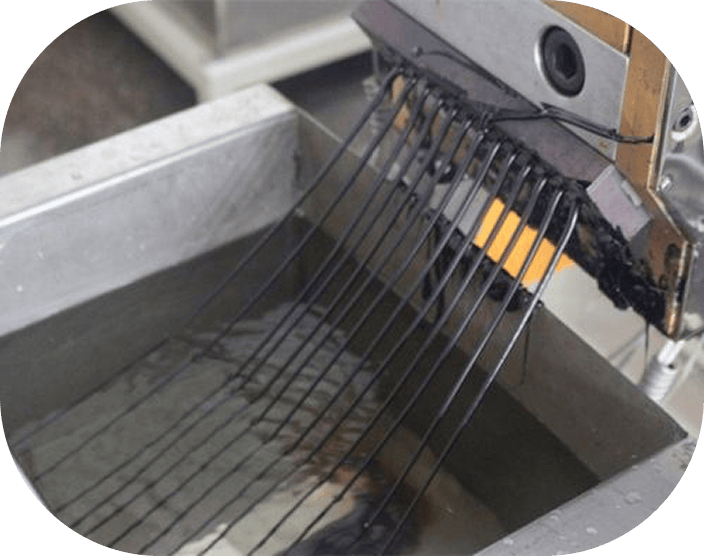

Extrusion is a continuous process where plastic flakes are inserted into the hopper and extruded into a line of plastic. These lines can be used to make new raw material, granulated plastic, or used in your own creative ways.
Products you can make: Costers, Keychains, Jewellery, Cactus pots, Tiles, and many more.
2HP Three-phase Motor 50 RPM Gearbox EN41B Screw And Barrel Highly Polished 3 Heating Zone Sync With Master Control Panel Output Capacity: 5kg Per Hour
Extruder PRO
The Extrusion Pro extrudes recycled plastic into a mould.
This machine is able to recycle up to 12 kg of plastic every hour and make productions of beams, bricks, Bigger pots, tiles, and many more.
2HP Three-phase Motor With VFD 70 RPM Gearbox EN41B Screw And Barrel Highly Polished 3 Heating Zone Sync With Master Control Panel Output Capacity: 12kg Per Hour

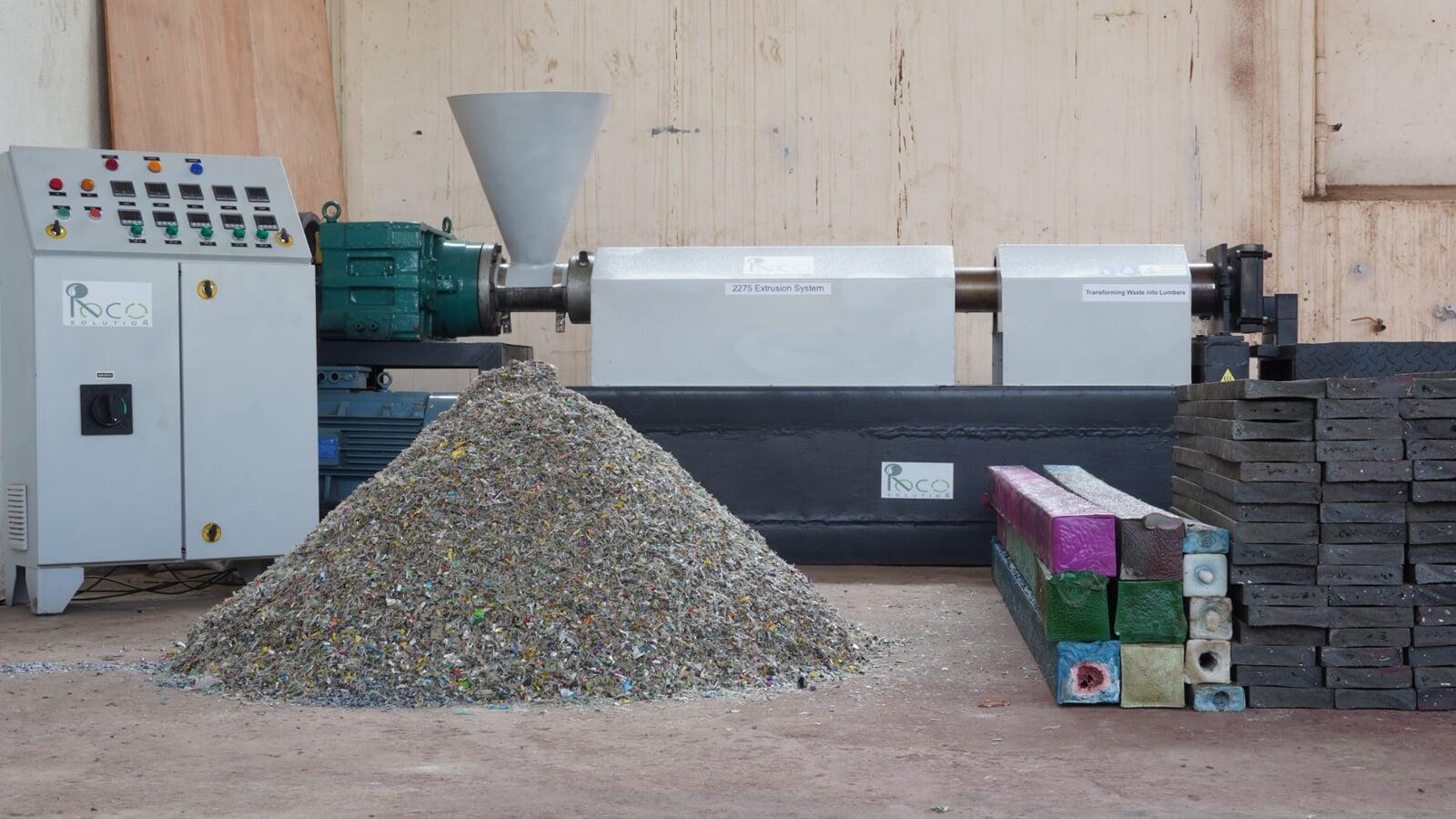

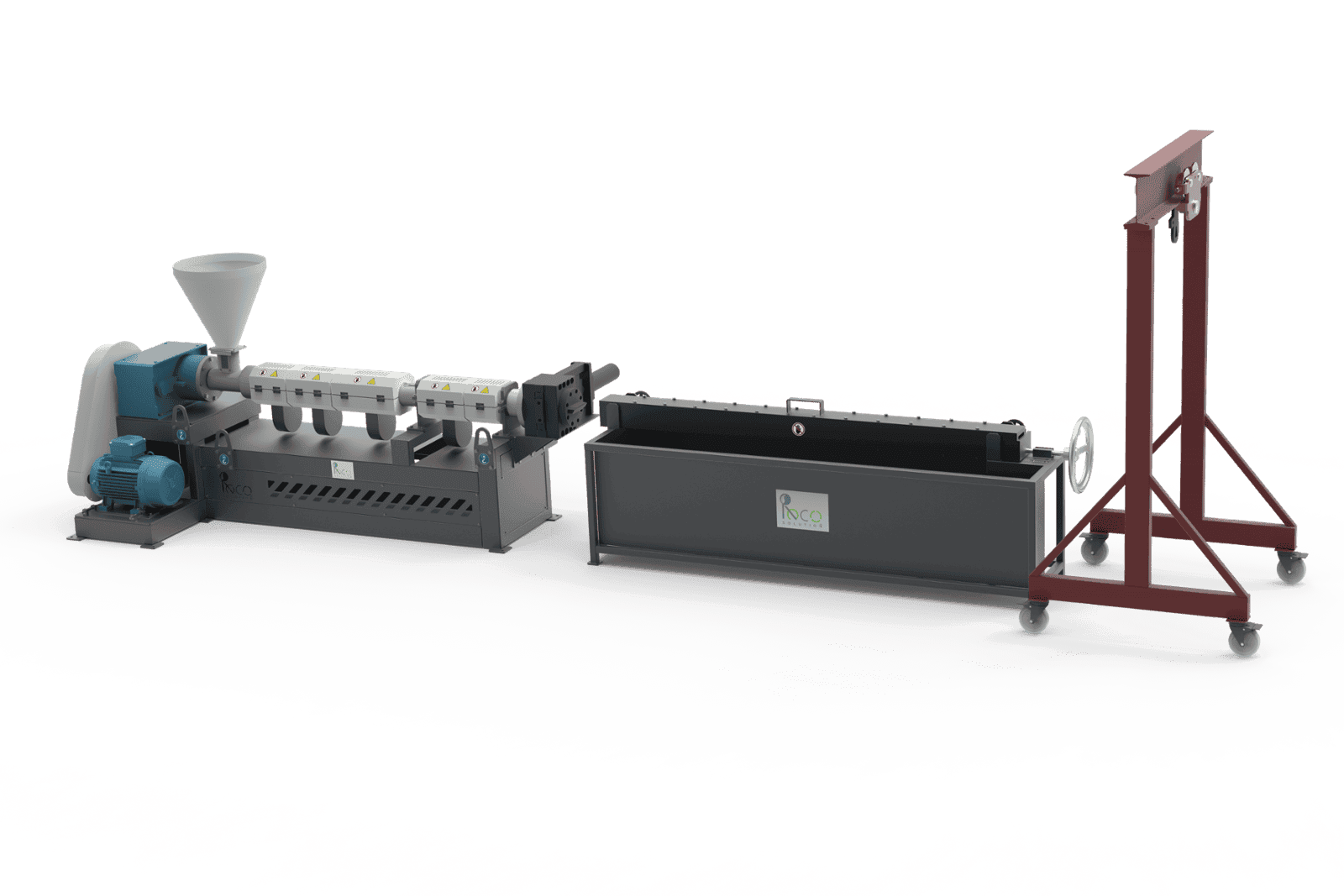

Semi Industrial Extrusion Machine
The Semi Industrial Extrusion Machine extrudes recycled plastic into a mould Automatically using an Advance hydraulics system and it automatically controls the RPM of screw.
This machine is able to recycle up to 20 kg of plastic every hour and make productions of bricks, Bigger pots, tiles, and many more.
2HP Three-phase Motor With VFD 70 RPM Gearbox EN41B Screw And Barrel Highly Polished 3 Heating Zone Sync With Master Control Panel Max. Extrusion Output: Max.12 Kg/Hr. Output Capacity: 20kg Per Hour Advanced extrusion control with optimized workflow to fill moulds Jack Capacity: 15 Ton Operation: Manual 2 Heating Zone Sync With Master Control Panel 4 Bearing To Ensure Smooth Up-down Movement Aluminum Platform 1500x1500 MM

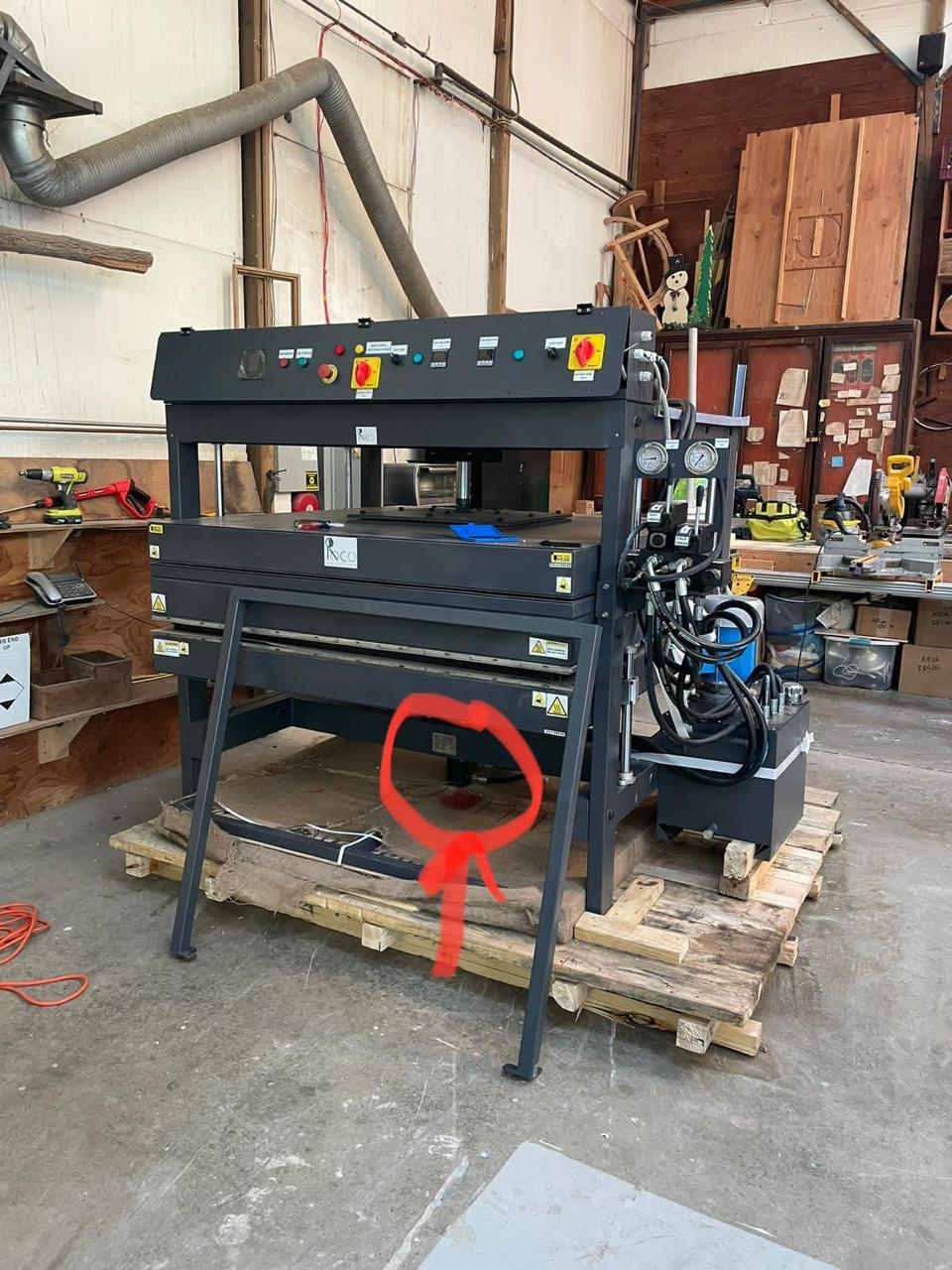

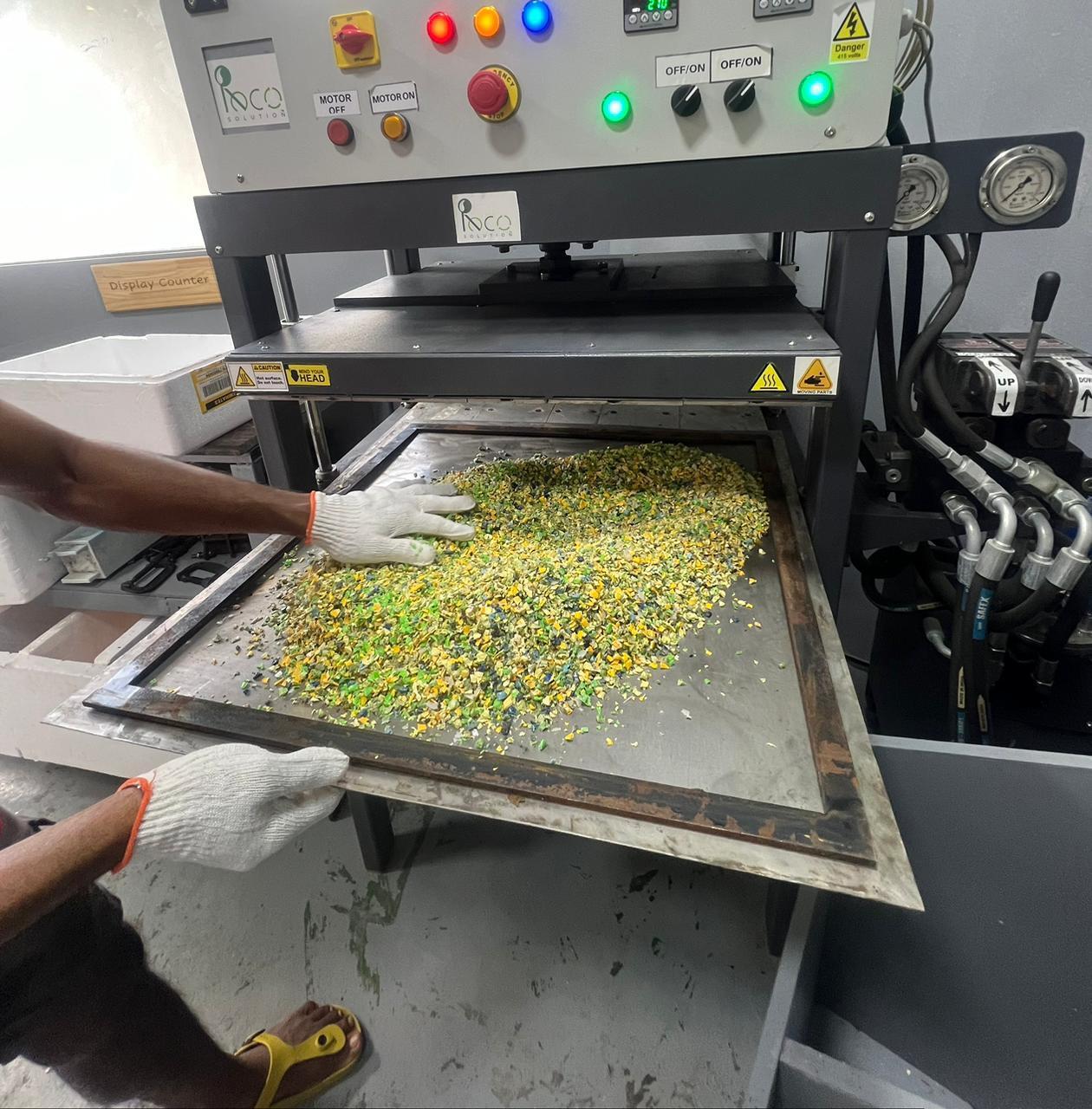

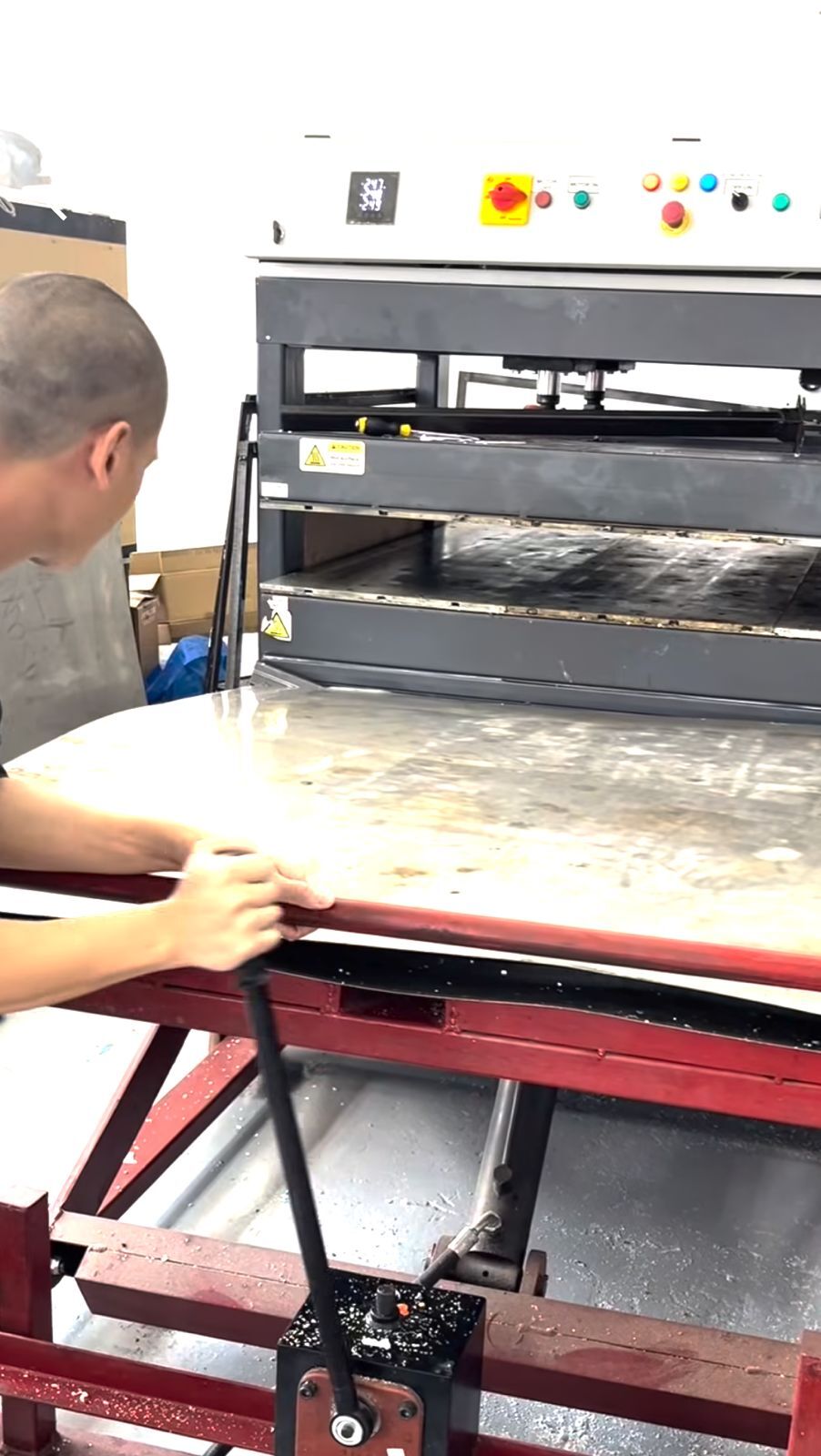

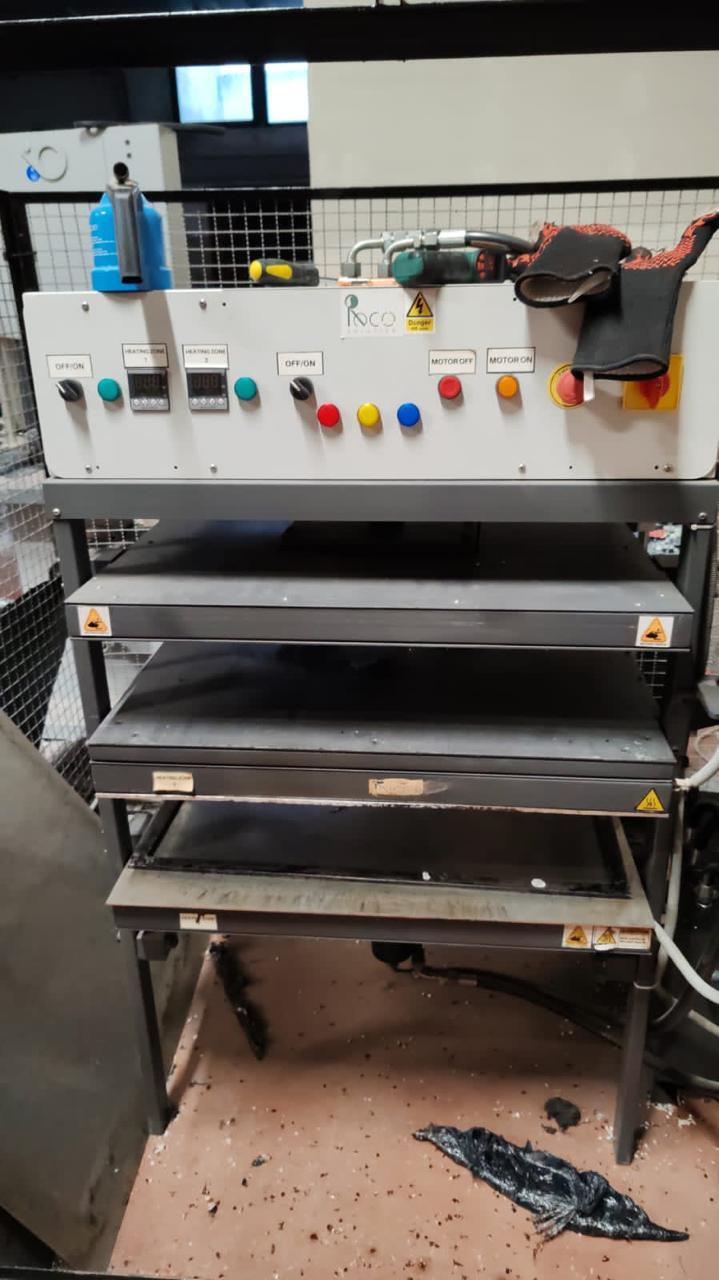

Sheet Press 600 x 600 mm |

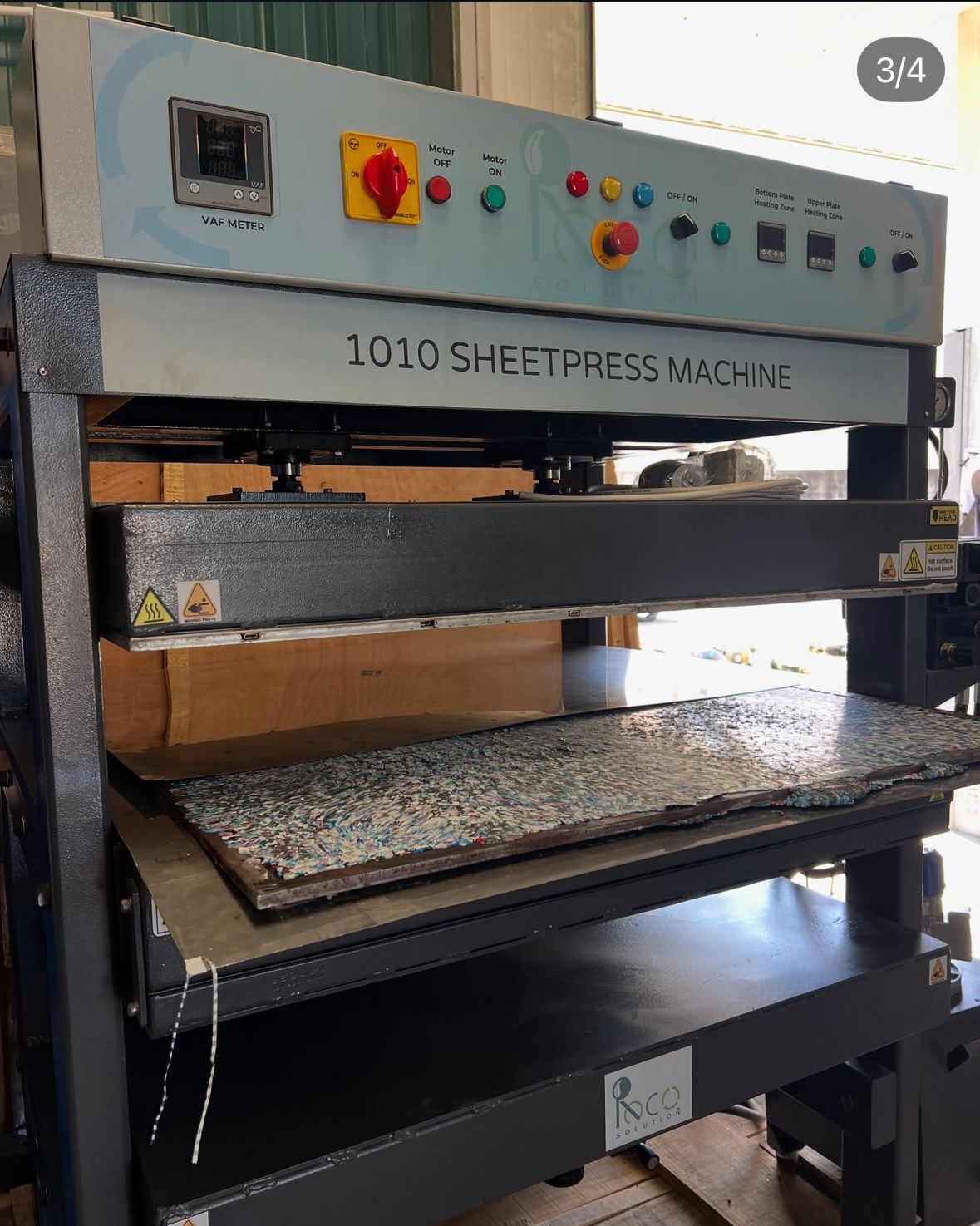

Sheet Press 1 Meter |

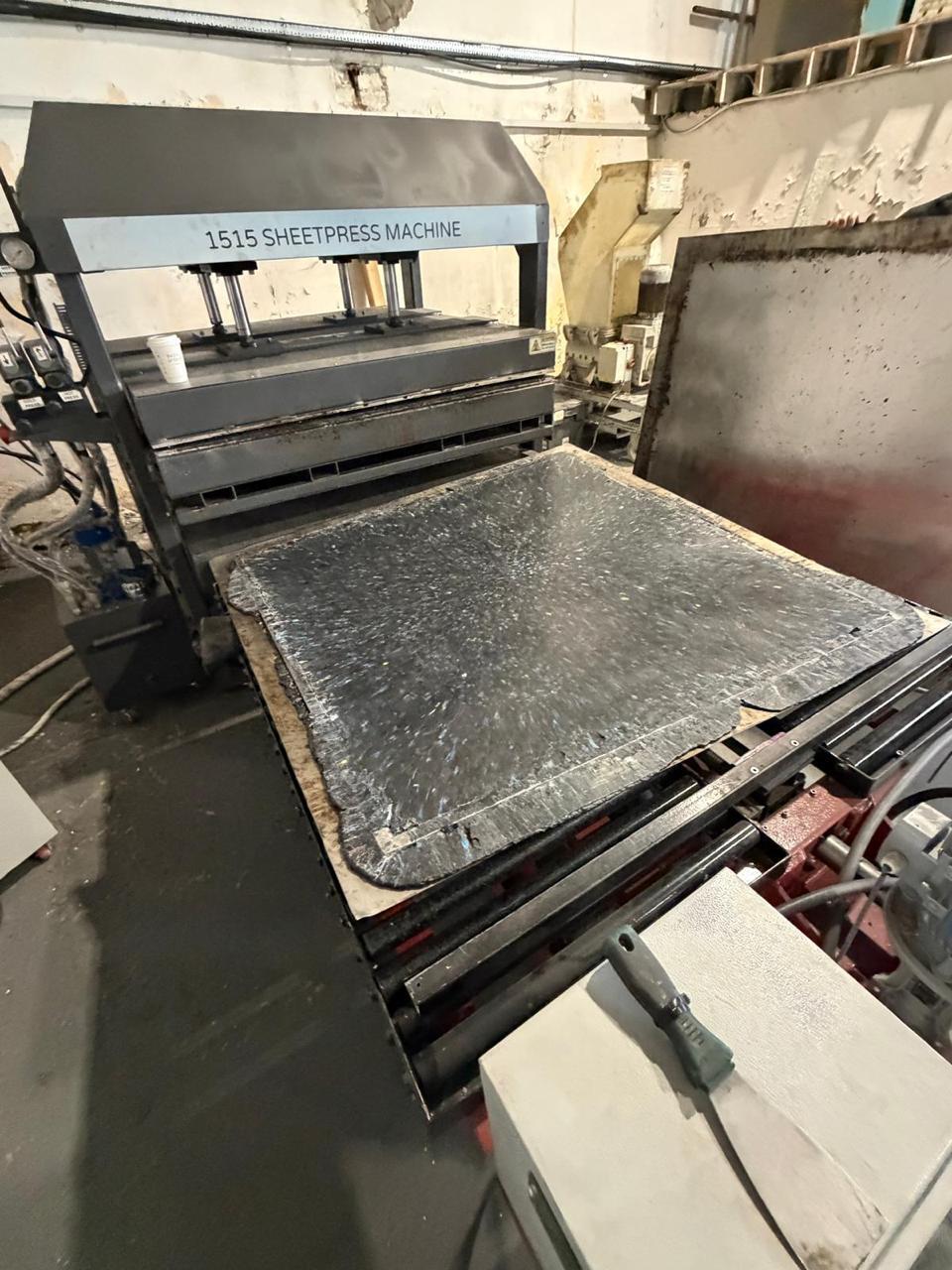

Sheet Press 1.5 Meter |

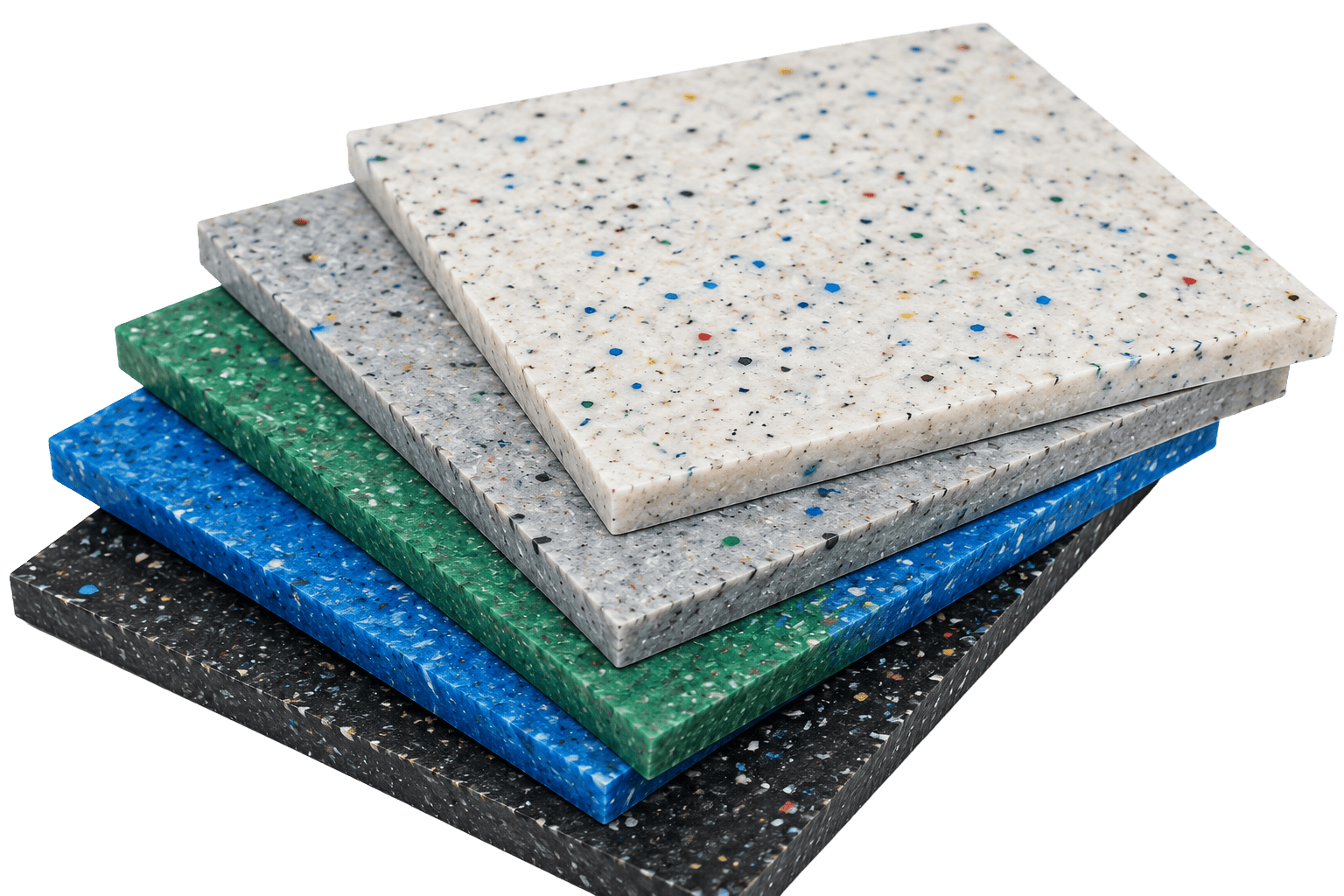

The Sheet press convert plastic wastes into recycled sheets..This machine can make multiple sheets of 600 x 600 mm. Recycling around 3 kg of plastic per sheet. Suitable for LDPE, HDPE, PP, PS, ABS |
The Sheet press convert plastic wastes into recycled sheets..This machine can make multiple sheets of 1 x 1 meter. Recycling around 14 kg of plastic per sheet. Suitable for LDPE, HDPE, PP, PS, ABS |
The Sheet press convert plastic wastes into recycled sheets.. This machine can make multiple sheets of 1.5x1.5 meter. Recycling around 23 kg of plastic per sheet. Suitable for LDPE, HDPE, PP, PS, ABS |
|
|
|

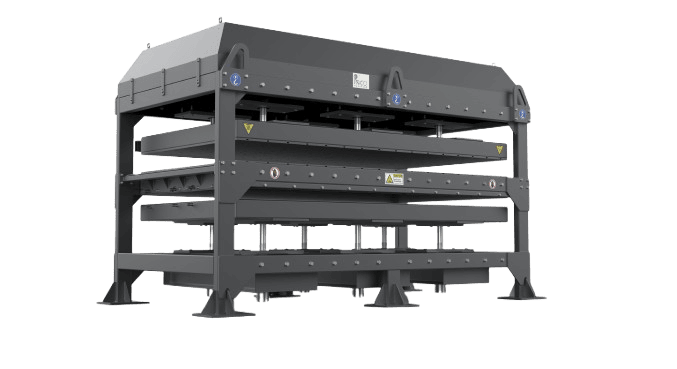

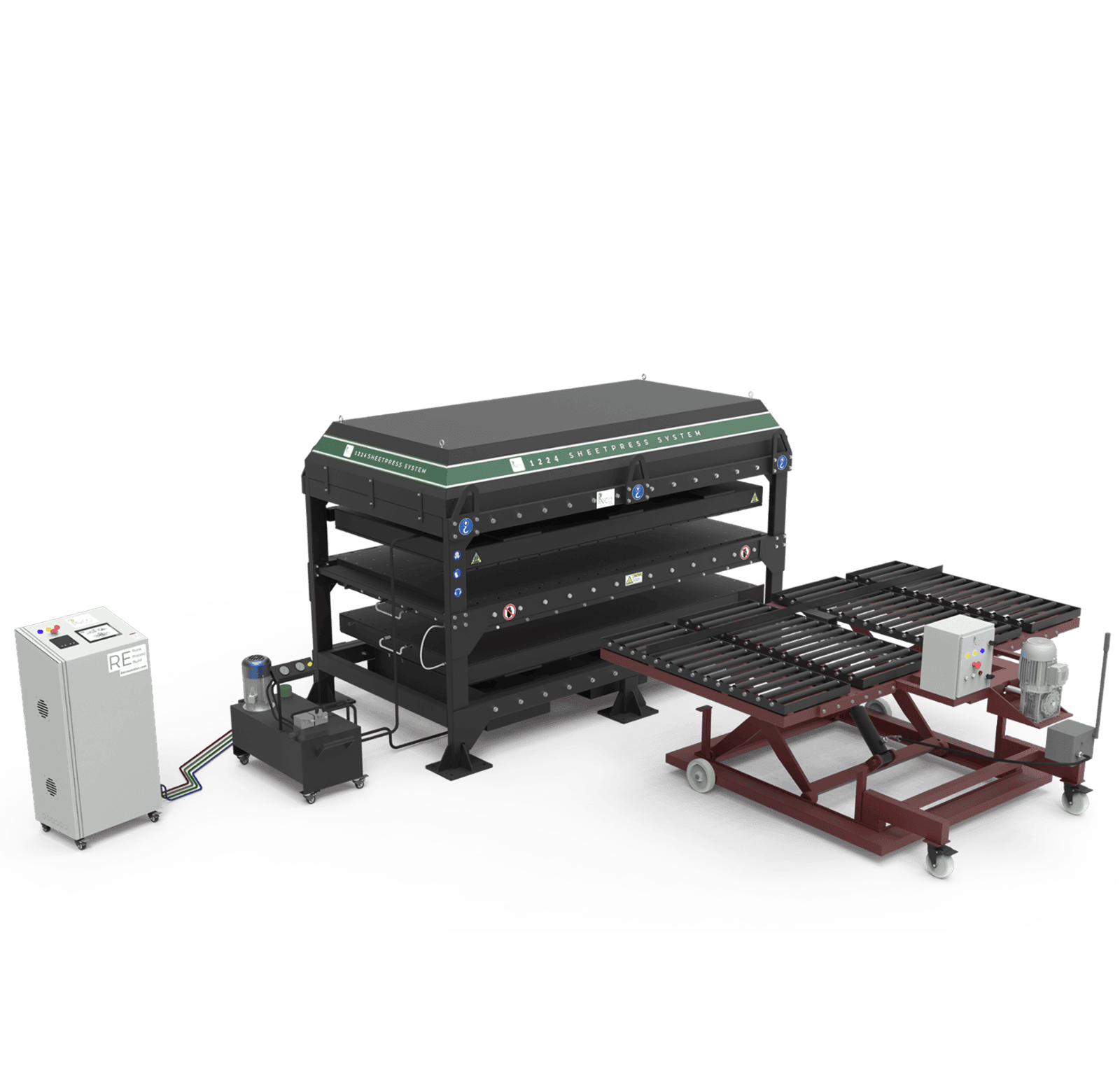

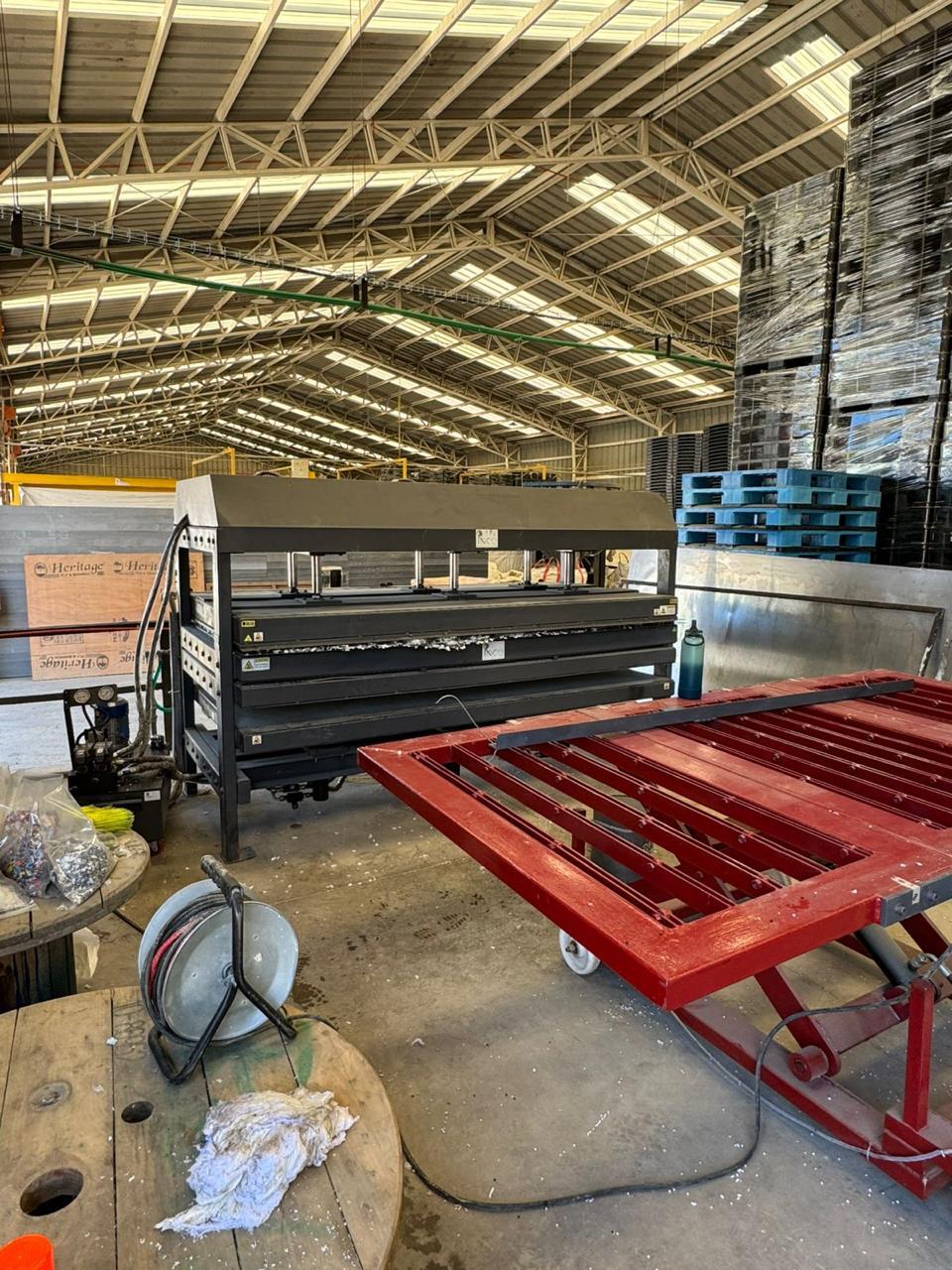

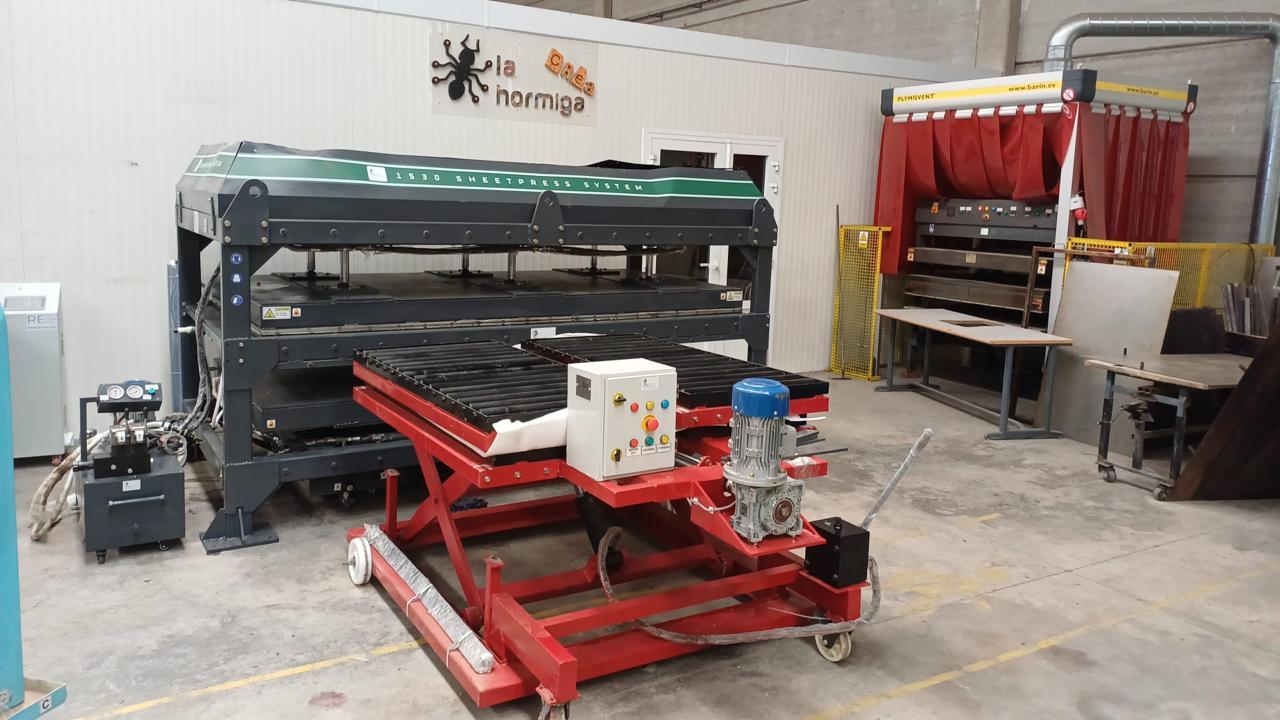

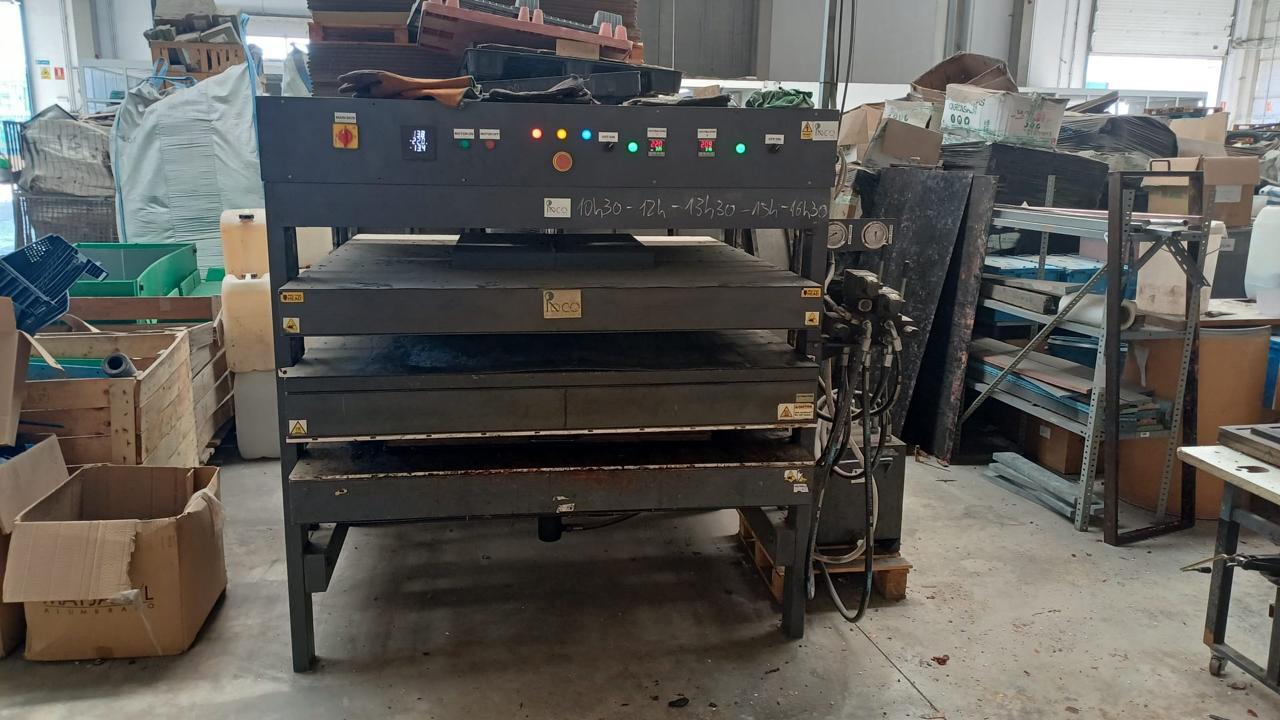

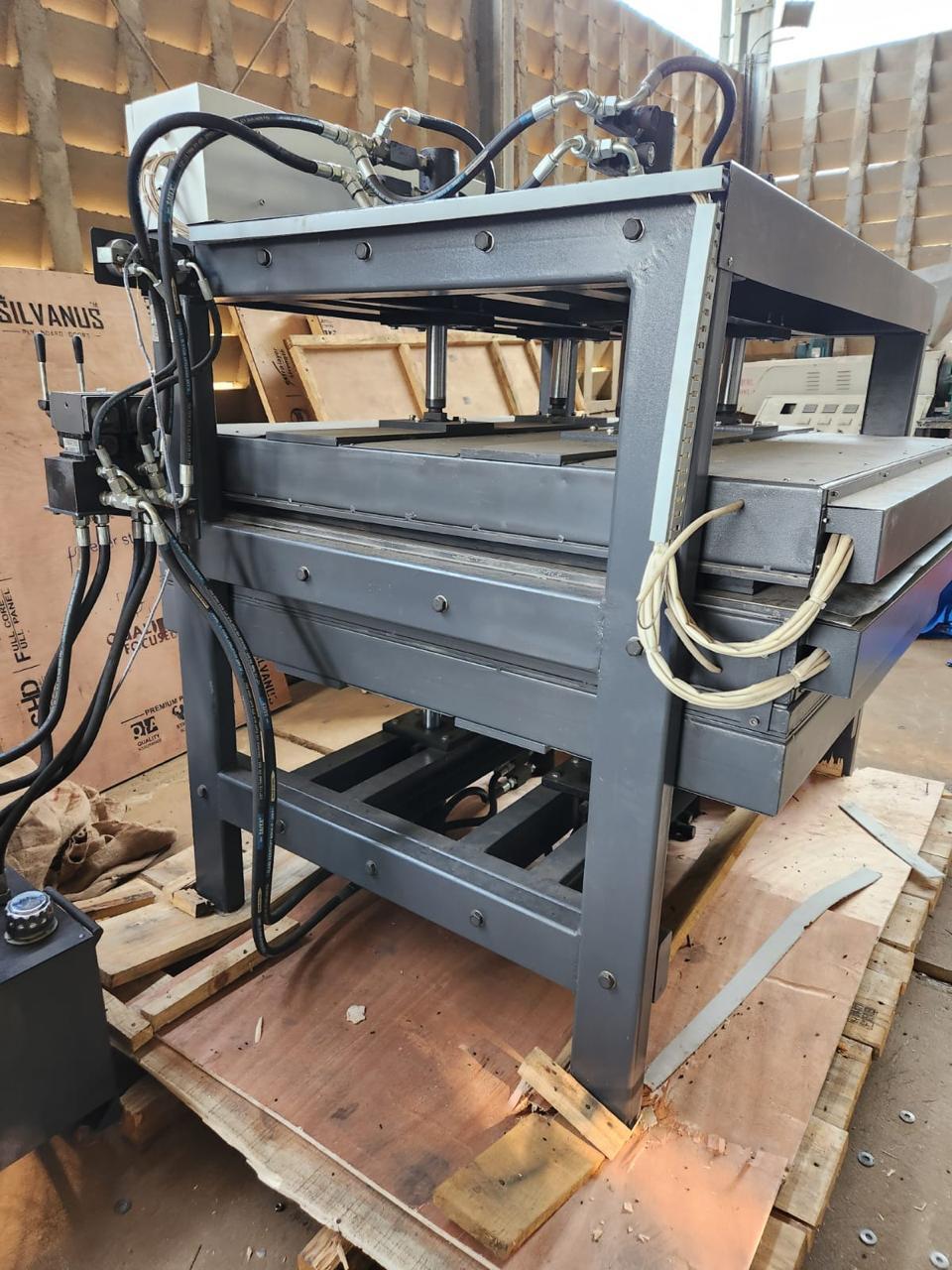

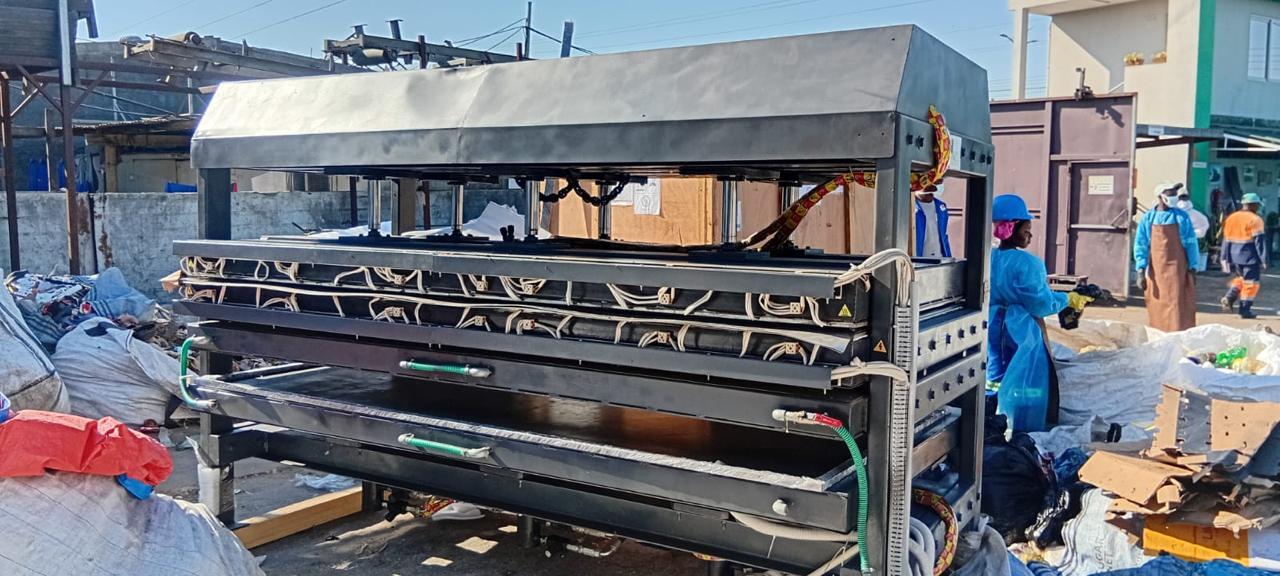

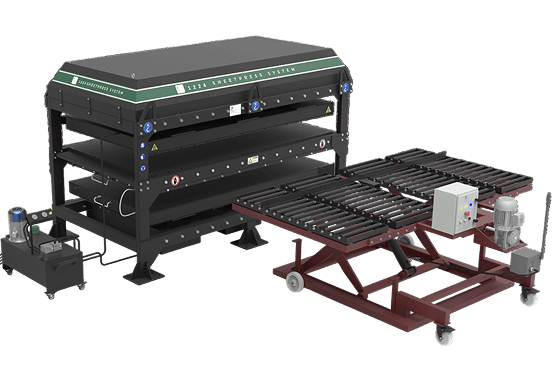

1500X1500 mm Automatic Hydraulic Sheet Press System for MLP and Tetrapack Waste
1500x1500mm 3 base plate heaters and whole supporting heavy duty structure.
Process Control Panel synchronized by one master control.
Jack Capacity: 8 Ton Operation: Manual System working Pressure 220kg/cm2 2 Heating Zone Sync With Master Control Panel 4 Bearing To Ensure Smooth Up-down Movement Aluminum Platform 1300x1300 MM
Injection
Plastic flakes are heated and injected into a mould.
Operation: Manual Super Polished EN41B Barrel And Tie Rod 2 Heating Zone Sync With Master Control Panel
Industrial Vertical Injection Machine
1100 mm / 50ID /70OD / Barrel Hydraulic system of 3 HP Injection Molding Machine – HDPE/PP/LDPE/PS.
Process Control Panel synchronized by one master control.
Auto Mould filling station.
Material to be processed: Recycled HDPE/PP/LDPE/PS Grinded Scrap Hydraulic Strock 900mm. Main Jack Capacity 15 Ton Barrel Size: L- 1100 mm, OD-70mm, ID- 50mm Advanced extrusion control with optimized workflow to fill molds Total Connected Load: 9* kW (Approx.)

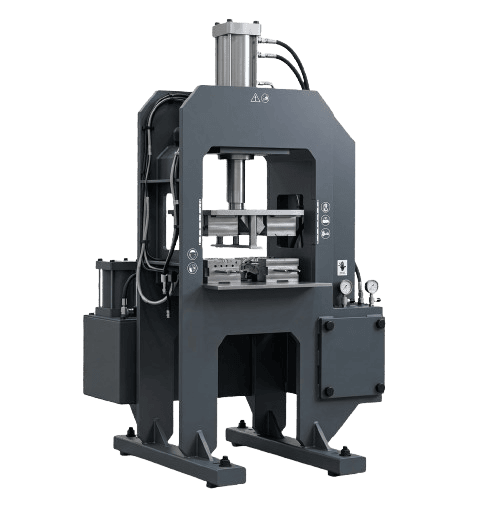

Hydraulic Press
MS Powder Coated frame with fix legs 5 ton jack 200x200 mm Base top and bottom plate 2 heavy duty spring
Extrusion Assemble Box
Components:
1. Extruder Screw 2. Extrusion Barrel 3. Hopper
Technical Data
Feame MS With En41b Extrusion Screw Designed as Per Precious Plastic Pro Design.

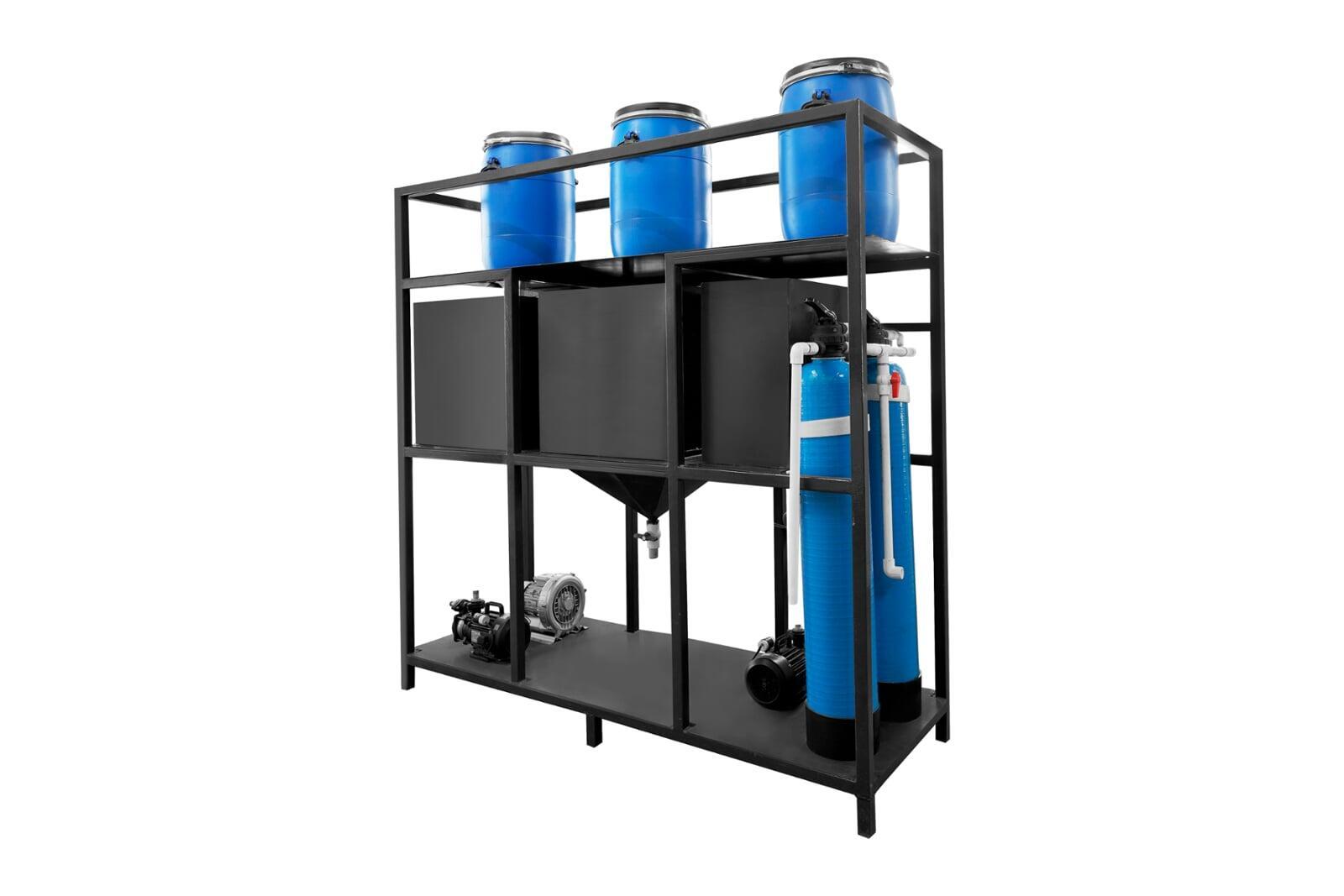

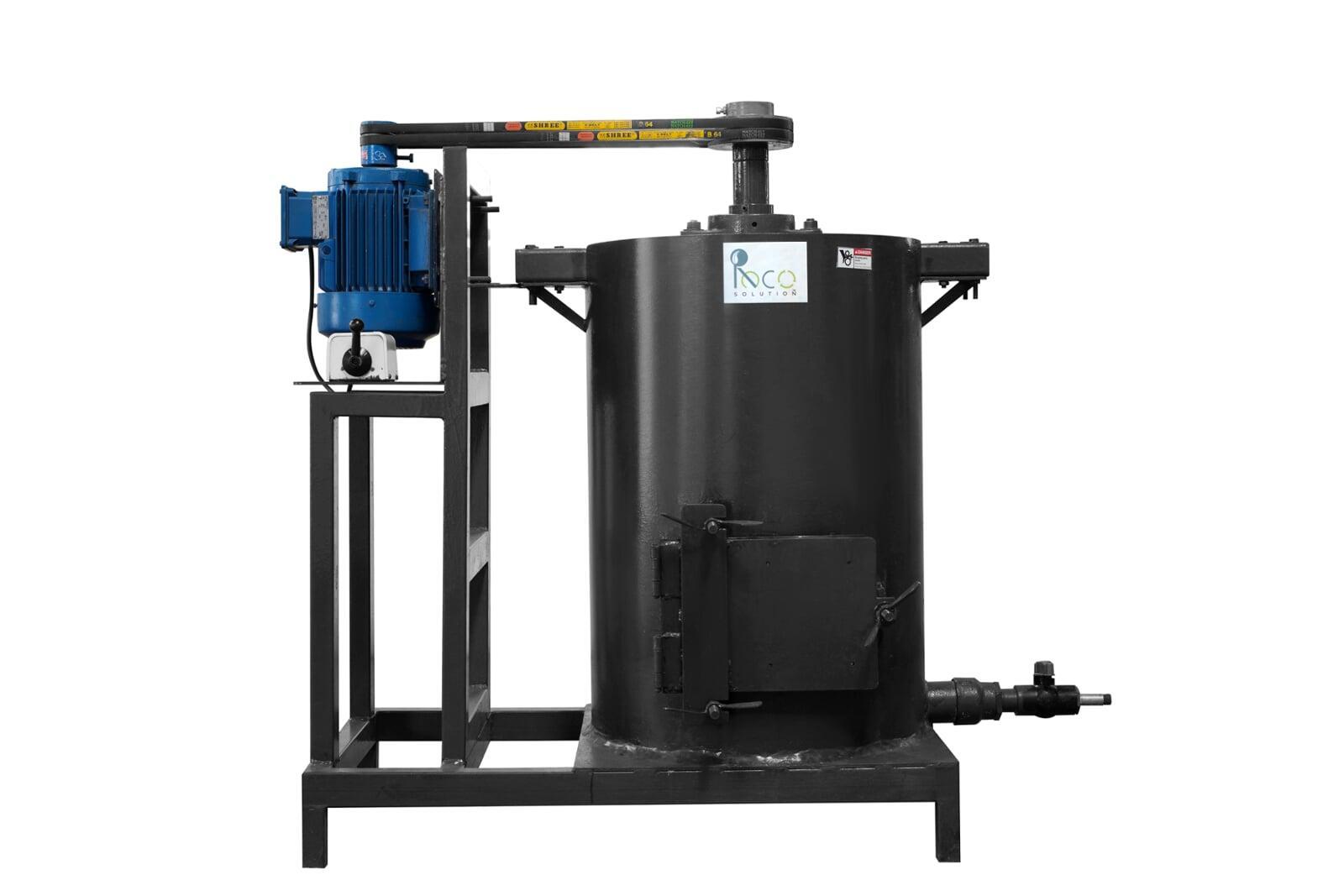

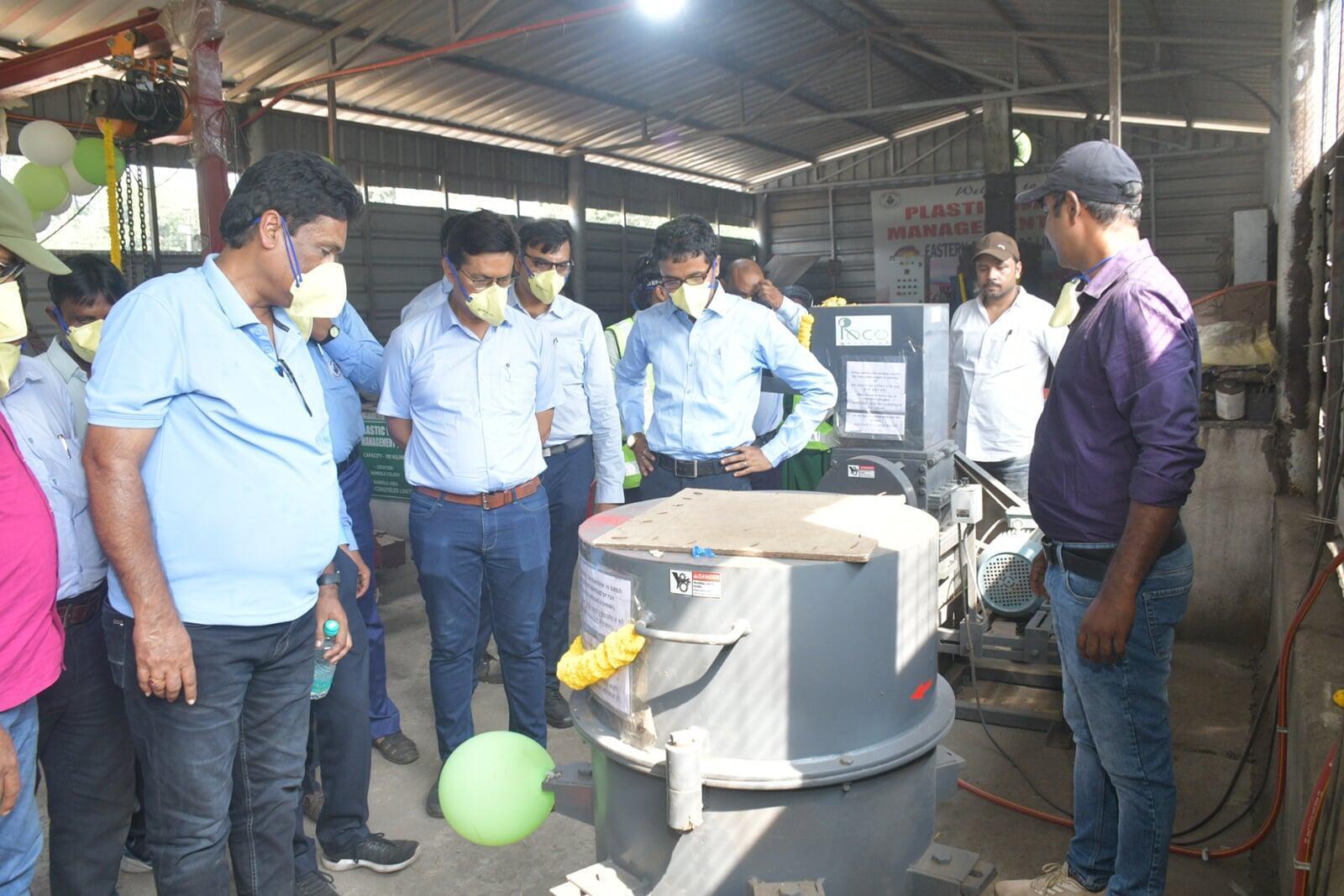

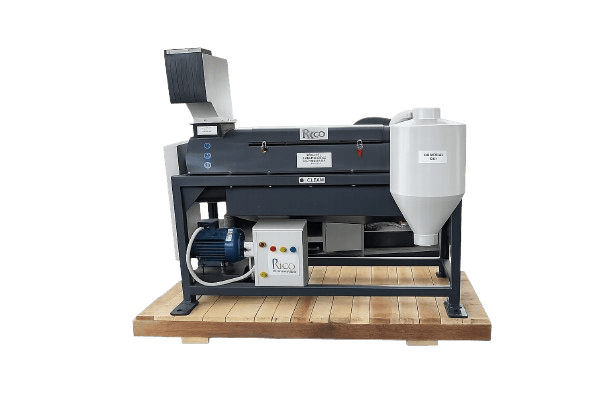

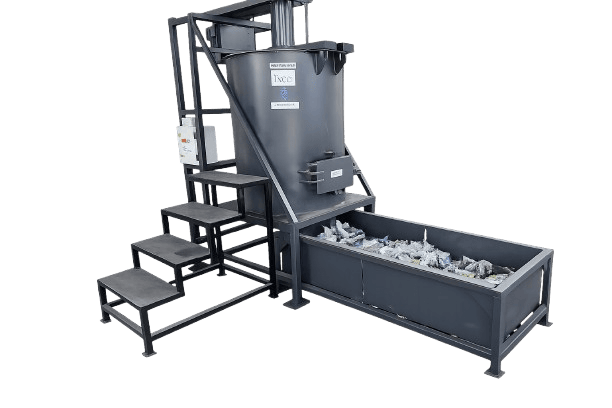

Washing System
MCB: Reputed make MCB in line with every system.
Other Electrical Outfits: Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing.
Phase Synchronizer and Over Voltage Protection as per CE Standard.
Input plastic types - HDPE,LDPE,PP,PET,PS Input Flake size - 4-30mm Input Tray size - 2*500*300*100mm Output cycles - 2 cycles/h Output weight - 4 kg/h
